Magnetic level switch for potable water in tanks with pressure up to 10 bar
-
DESCRIPTION
General features0
Suitable for liquid level control in pressurized vessels and tanks up to 10 bar.
Used in autoclave systems to control the filling pump or to automatically reset the air chamber.
- Shockproof thermoplastic housing with captive screws.
- Float made of stainless steel Ø 38 x 115 mm.
- Option to select between two fixed level differentials (factory setting: 20 mm differential).
- Body made of brass alloy CW614N-DW M-S – suitable for potable water.
- Cable outlet with shockproof thermoplastic cable gland G 3/8.
- Maximum ambient temperature for storage and transport: -35 to 70 °C.
- Unit weight: 0.6 kg.
Electric features- Switching microswitch.
- Electrical connections via 6.35 mm Faston terminals (included).
- Rated insulation voltage Ui 380V~
- Continuous service rated current Ith 10A
-
ADVANTAGES
0
Suitable for liquid level control in pressurized vessels and tanks up to 10 bar.
Used in autoclave systems to control the filling pump or to automatically reset the air chamber.
Advantages -
TECHNICAL SPECIFICATION
Code Float type Level differential mm Maximum operating pressure Maximum liquid temperature Connection Protection rating AD52W stainless steel 20 ÷ 60 10 bar 100 °C G 1 1/4 IP54 -
HOMOLOGATION AND INSTALLATION
Homologation
- Certification according to D.M. 174 and D.L. 18/2023
- Compliance with EN 60947-5-1 standards.

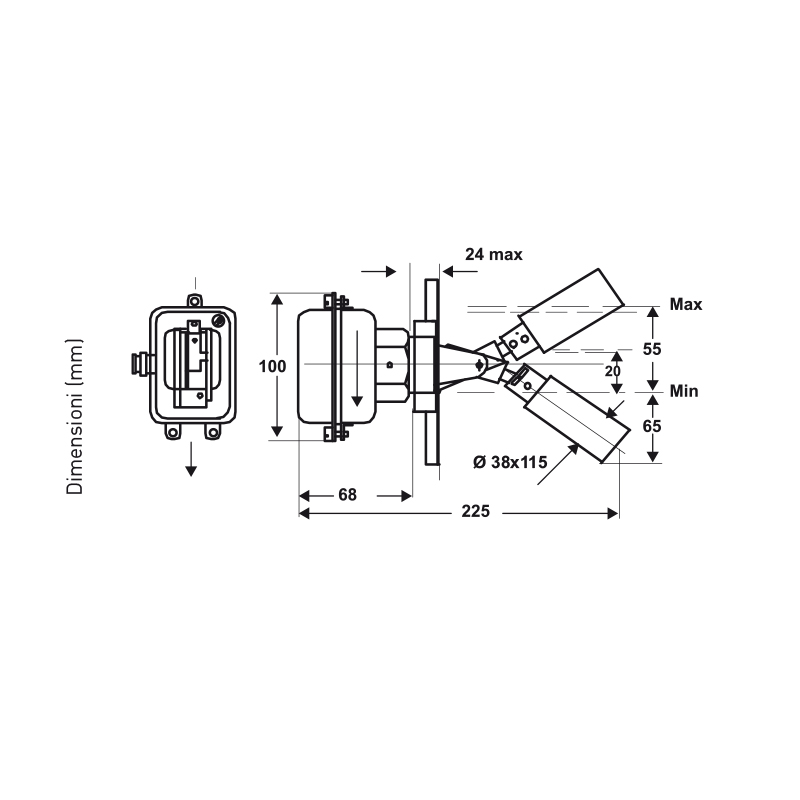

Installation and useAD52W male threaded connection G 1 1/4, 36 mm wrench size, with optional G ½” threaded connection.
ACCESSORIES:
- EAD01 Stainless steel float, diameter 38 x 115 mm
Operation by magnetic action (repulsion with opposing permanent magnets).
The liquid must have a specific gravity between 0.9 and 1.1 kg/dm³.
Maximum 100°C, recommended for potable water control.
When the level rises: C-NC opens, C-NO closes. - TECHNICAL LITERATURE
-
