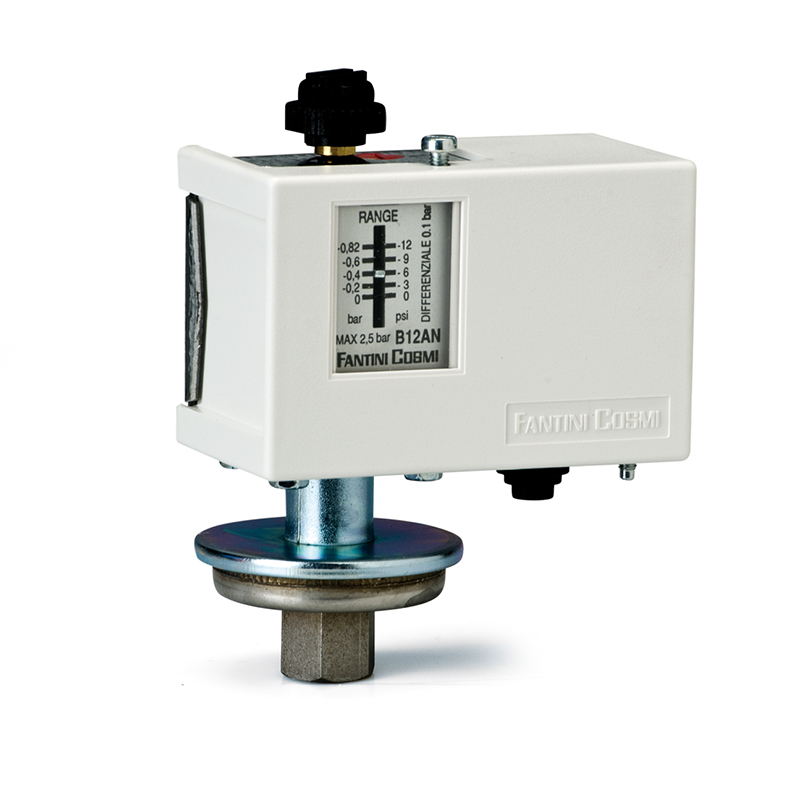

B12AN – B12BN

Vacuum pressure switches up to - 0.82 bar

•
•
•
•

B12AN – B12BN FOR MORE INFO

•
•

• DESCRIPTION
• TECHNICAL SPECIFICATION
• HOMOLOGATION AND INSTALLATION
• TECHNICAL LITERATURE

• DESCRIPTION
  0

  To adjust vacuum values in the pumps (B12AN) or to control pressure values of tanks or steam generators where it is required a low differential (B12BN).

  General features

  • Sensitive element with stainless steel membrane, laser welded.
  • Metallic frame.
  • Cover in shockproof thermoplastic material.
  • Output connections with PVC cable gland.
  • Female connection G 1/4 (17 mm key).
  • Maximum temperature of the controlled fluid: 120 °C.
  • Pressure switch body admissible temperature: -35 ÷ 60°C.
  • Storage and transport temperature: -35 ÷ 60°C.
  • Unit weight: 0.43 Kg B12AN.
  • Unit weight: 0.44 Kg B12BN.



  ACCESSORIES

  • G1/2 cable gland in V0 self-extinguishing, shockproof thermoplastic material, code: 303298LA
  • IP44 protection casing IP44, code: 2593367

  Electric features

  • Rated insulation voltage Ui 415V~
  • Continuous duty rated current Ith 16A
• ADVANTAGES
  0

  To adjust vacuum values in the pumps (B12AN) or to control pressure values of tanks or steam generators where it is required a low differential (B12BN).

  Advantages
• TECHNICAL SPECIFICATION

  CODE	RANGE	DIFFERENTIAL	SENSITIVE ELEMENT MAX. PRESSURE	CONNECTION G 1/4	PROTECTION DEGREE

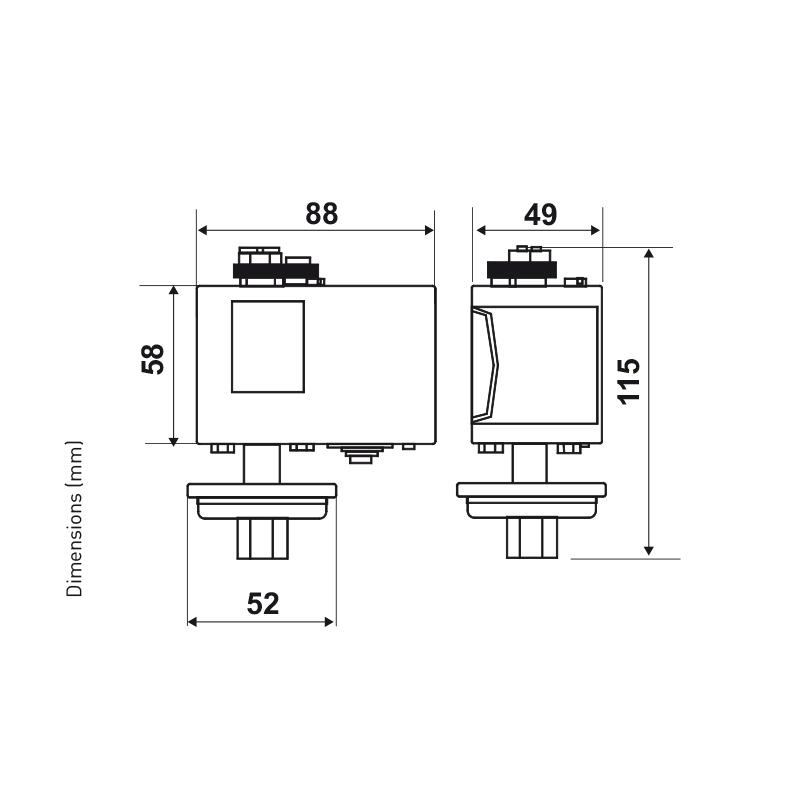

  B12AN	-0,82 ÷ 0 bar	0.1 bar fixed	2,5 bar	female	IP40
  B12AN4*	-0,82 ÷ 0 bar	0.1 bar fixed	2,5 bar	male	IP40
  B12BN	0,2 ÷ 2 bar	0.1 ÷ 0.5 bar	4 bar	female	IP40

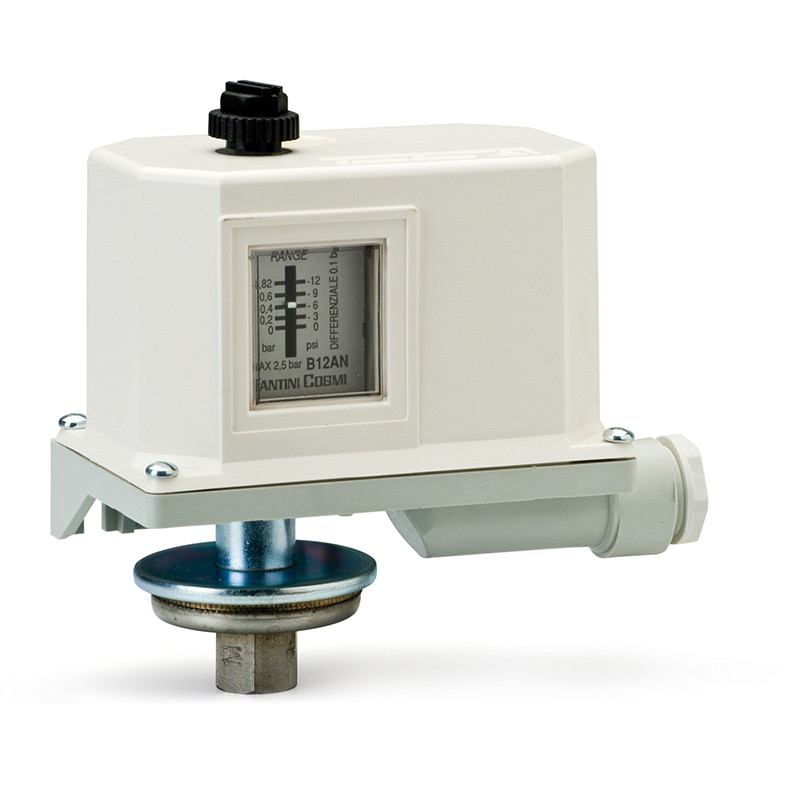

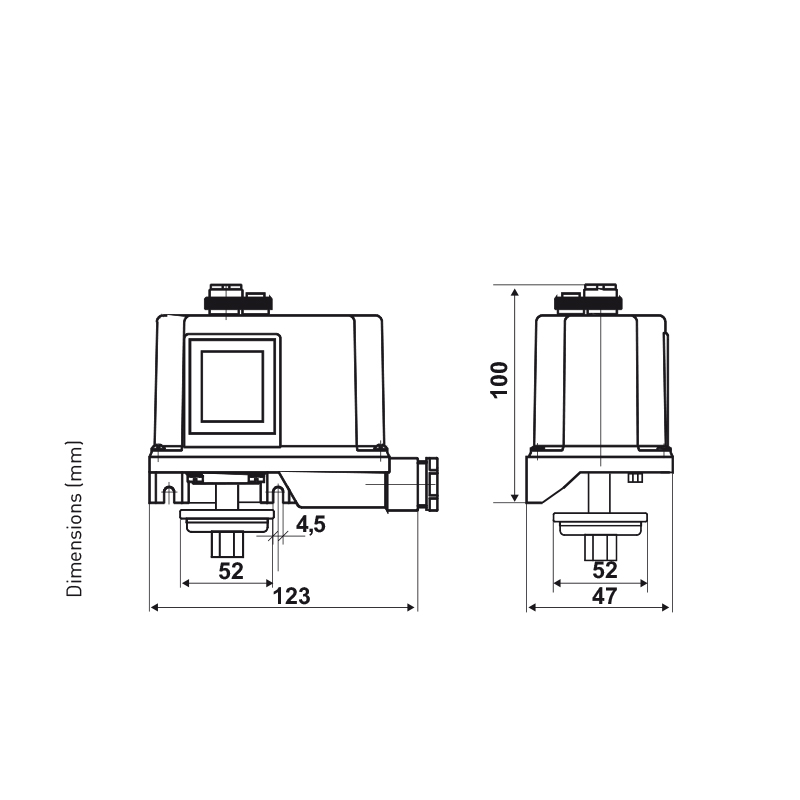

  B12ANY	-0,82 ÷ 0 bar	0.1 bar fixed	2,5 bar	female	IP65
  B12BNY	0,2 ÷ 2 bar	0.1 ÷ 0.5 bar	4 bar	female	IP65
  * delivery time and minimum purchase quantity upon request		1 Bar = 100Kpa the differential must be deducted from the range value

• HOMOLOGATION AND INSTALLATION
  Homologation

  • Complies with CE 0497 Directives.
  • Complies with EN 60947-1 and 60947-5-1 standards.

  Installation and use

  • Direct installation on the pipe.
  • Pressure element connection G 1/4.
  • In case of fluid temperatures higher than the maximum allowed, connect the pressure switch to the pipe by inserting a metallic spiral between the pressure switch and the pipe to facilitate heat dispersion.
  • Possibility of mounting on metallic clamp, exept for the waterproof casing versions.
  • Direct installation on the pipe.

  • When pressure increases: 1-2 opens, 1-4 closes.
  • In the pressure switch with blocking and manual reset at maximum pressure, the reset takes place when the pressure is below the
    value set on differential.
• TECHNICAL LITERATURE
  • B12A-B12BN EN technical data sheet
  • B12AN - B12BN EN-ES-FR-DE-RU instructions
  • PED certificate
