C38B OUT OF PRODUCTION

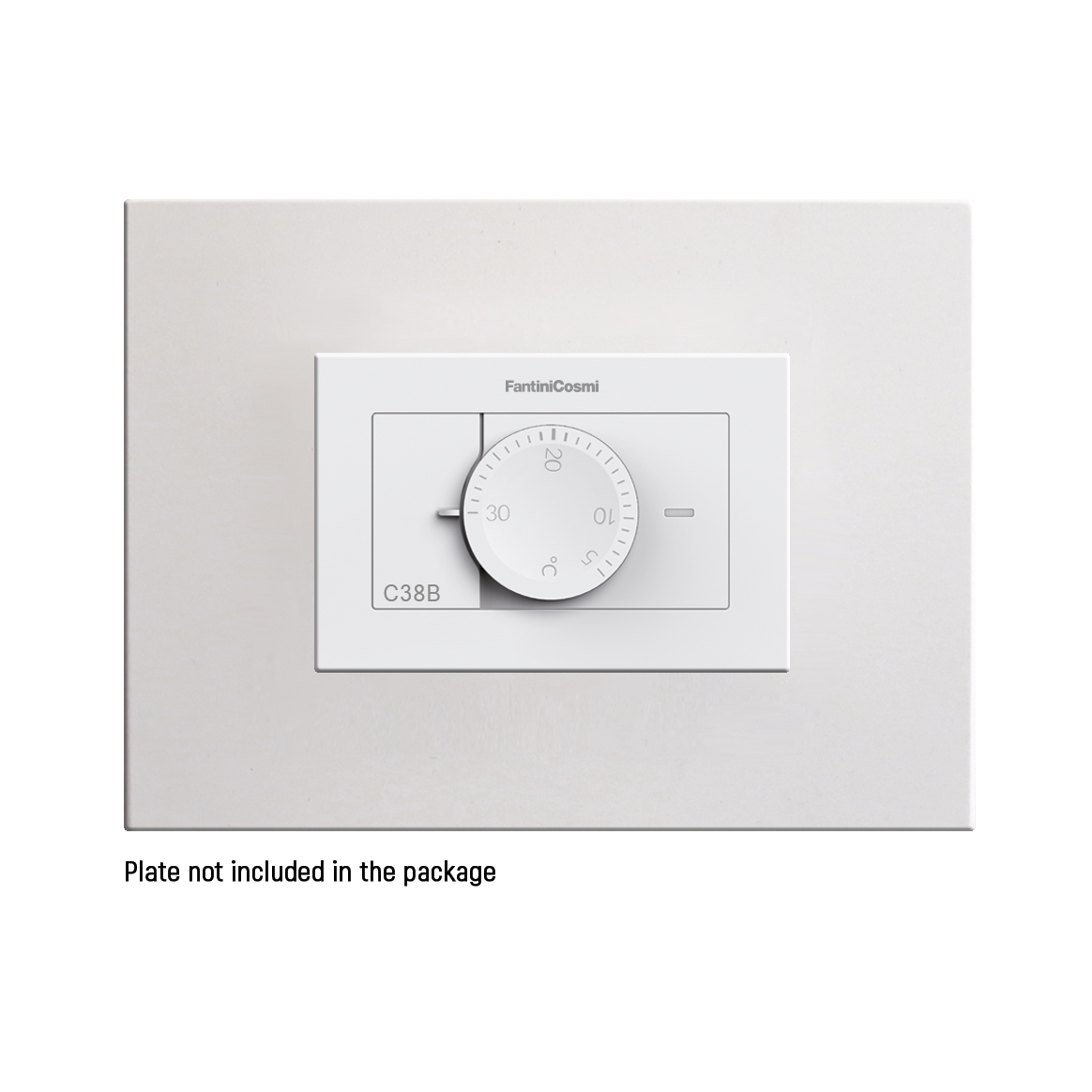

Flush-mount room thermostat, single temperature, battery powered

•
•

C38B FOR MORE INFO

• DESCRIPTION
• TECHNICAL SPECIFICATION
• HOMOLOGATION AND INSTALLATION
• TECHNICAL LITERATURE

• DESCRIPTION
  0

  This product is out of production and has been replaced by the C38BA.

  Flush-mount electronic room thermostats for temperature control in heating systems.

  Compatible with all standard wall plates thanks to the multi-plate KIT, which includes: thermostat, frames, adapters, and 2 anthracite covers for the C38 and 2 white covers for the C38B.

  General features

  Compatible with all standard wall plates thanks to the multi-plate kit, which includes:

  – 1 “A” COVER in anthracite for the C37 version and 1 in white for the C37B version
  – 1 “B” COVER in anthracite for the C37 version and 1 in white for the C37B version
  – 1 PAIR OF ADAPTERS in anthracite for the C37 version and 1 white pair for the C37B version
  – 1 PAIR OF ADAPTERS for Bticino Matix plates (white only, for the C37B version)
  – 4 FRAMES to ensure compatibility with the most common wall plates

  • 1 adjustable temperature.
  • Class A software.
  • Double insulation.
  • Battery charge indicator LED.
  • Large-diameter adjustment knob with wide scale.
  • Batteries removable from the front of the thermostat.
  • Unit weight: 0.20 kg.

  Electric features

  • Battery-powered with no mains connection, using 2 AAA 1.5 V batteries (lasting over one year).
  • Micro-disconnection (1BU).
  • Volt-free changeover contact.
• ADVANTAGES
  0

  This product is out of production and has been replaced by the C38BA.

  Flush-mount electronic room thermostats for temperature control in heating systems.

  Compatible with all standard wall plates thanks to the multi-plate KIT, which includes: thermostat, frames, adapters, and 2 anthracite covers for the C38 and 2 white covers for the C38B.

  Advantages
• TECHNICAL SPECIFICATION

  CODE	COLOR	TEMPERATURE SETTING RANGE	DIFFERENTIAL	POWER SUPPLY	CONTACT RATING
  C38B	White	5 ÷ 30 °C	0.5 K	2 × AAA 1.5 V batteries	5(3)A–250 Vac
  			The differential values refer to a thermal gradient of 4 K/h.

• HOMOLOGATION AND INSTALLATION
  Homologation

  Compliant with CEI EN 60730-1 and relevant Part 2 standards.
  ErP classification: ErP Class I; 1% (EU Reg. 811/2013 – 813/2013).

  Installation and use

  • Flush mounting in 3-module 503 wall boxes using 2 screws (included).
  • Two-wire connection to the load.
  • Install the thermostat 1.5 m above the floor, away from kitchens, heat sources, windows, and doors.

  COMPATIBLE PLATES

  BTICINO: Axolute, Axolute Air, Livinglight Air, Livinglight, Light, Light Tech, Matix (C38B only), Living, Living Now (with optional adapter cod. 1571050/1571051)
  VIMAR: Arké, Eikon Evo, Idea, Rondò, Plana, Eikon
  GEWISS: Chorus One, Lux, Art
  AVE: Sistema 45, Sistema 44
  LEGRAND: Vela
  ABB: Elos, Mylos

  Opens contacts 1–2 as the temperature rises.
