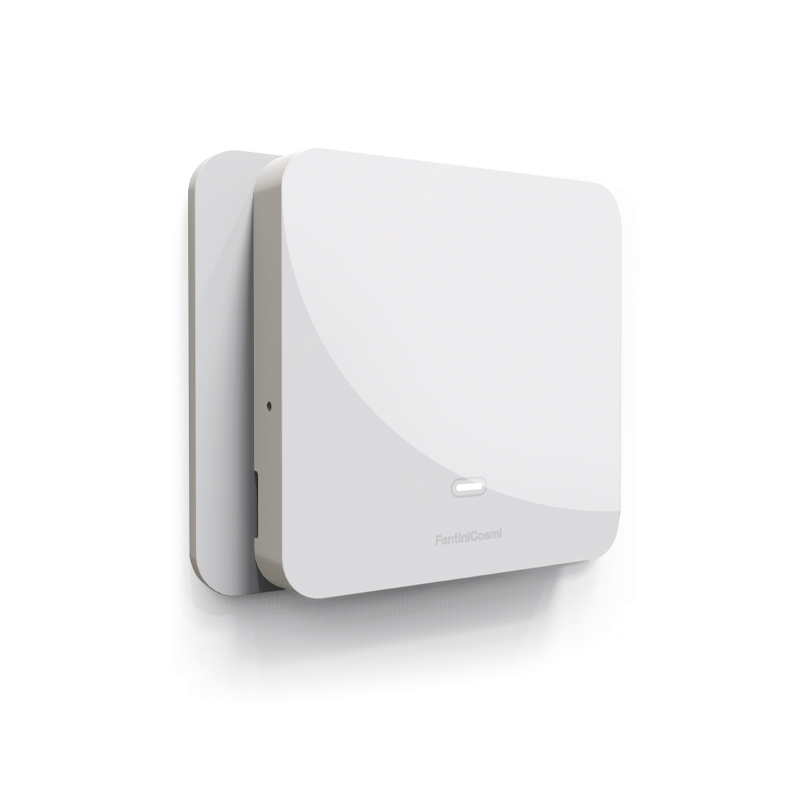

CH177RL

1 relay wireless receiver

•

CH177RL FOR MORE INFO

•
•
•

• DESCRIPTION
• TECHNICAL SPECIFICATION
• HOMOLOGATION AND INSTALLATION
• TECHNICAL LITERATURE

• DESCRIPTION
  0

  The CH177RL device is a 1-relay actuator module that, connected to the wireless network of the Fantini Cosmi multi-zone system, allows the activation and management of various units in the system, such as boilers, heat pumps, zone solenoid valves, cooling systems, dehumidifiers, VMC (controlled mechanical ventilation), irrigation systems, and other devices.

  General features

  • 1-Relay Configurable for: General/zone heating or cooling, dehumidification, voltage contact
  • ISM band EU868 transmission frequency

  Electric features

  • Contact rating: 16(4)A – 250V AC
• ADVANTAGES
  0

  The CH177RL device is a 1-relay actuator module that, connected to the wireless network of the Fantini Cosmi multi-zone system, allows the activation and management of various units in the system, such as boilers, heat pumps, zone solenoid valves, cooling systems, dehumidifiers, VMC (controlled mechanical ventilation), irrigation systems, and other devices.

  Advantages
• TECHNICAL SPECIFICATION

  CODE	POWER SUPPLY	MOUNTING	PROTECTION DEGREE
  CH177RL	230Vca - 50HZ	wall	IP32

• HOMOLOGATION AND INSTALLATION
  Homologation

  • Complies with: EN 60730-1, Directive 2014/53/EU (RED), R&TTE Directives EN300 220-3, EN 301 489-03

  Installation and use

  • Wall-mounted installation
• TECHNICAL LITERATURE
  • Brochure EN multi-zone termoregulation system
