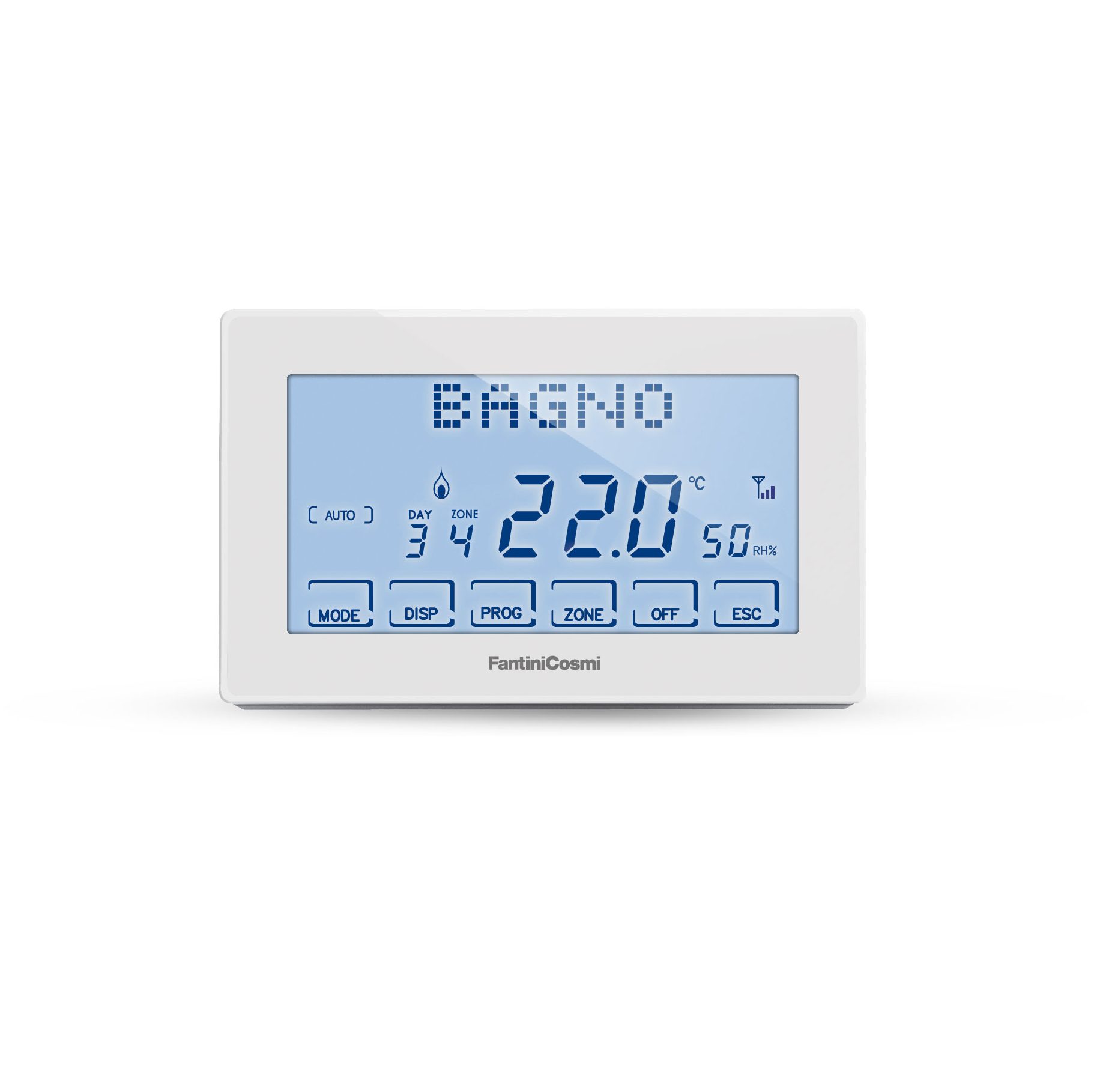

WiFi wireless multi-zone programmable thermostat
-
DESCRIPTION
General features0
WiFi wireless multi-zone programmable thermostat
Supervisor for the Fantini Cosmi wireless multi-zone temperature and humidity control system
Long-range LoRa® radio communication
Weekly and seasonal programs
Control of heating, cooling, and dehumidification systems
Remote control via mobile APP Intelliclima+
- WiFi connection 2.4 GHz (802.11 b/g/n)
- Transmission frequency ISM band EU868
- Temperature setpoint range 2 ÷ 30 °C, 0.1°C INCREASING
- Room temperature measurement/display range -50 ÷ +50 °C
- Maximum ambient temperature 45°C
- Relative humidity setpoint range 30 ÷ 70%, 1% increasing
- Ambient relative humidity measurement/display range 0 ÷ 100%
- Control differential 0.3 ÷ 5 K
- Radio modulation LoRa®
- Storage temperature -10°C ÷ +60°C
- Protection rating IP40
- Pollution degree 2
- Available display languages Italian, English, French, Spanish, German, Russian
- CH180WIFIRL screen lock With password and cleaning mode
System management:
- Up to 8 zones
- Up to 32 devices connected directly
- Daylight saving time
- Summer/Winter mode
- Display of system usage in operating hours
- Display of system faults
- Temperature offset correction for thermostats
Electric features- Power supply 230V-50Hz
- Maximum power consumption 5 W
- Contact rating 5(3)A 250 VAC
- Type of action 1 B.U. (Micro-disconnection)
- Output relay configuration: 1 relay for heating/cooling or dehumidifier (3 screw
terminals, normally closed + normally open) - Software A CLASS
- Electrical insulation: Double insulation
-
ADVANTAGES
0
WiFi wireless multi-zone programmable thermostat
Supervisor for the Fantini Cosmi wireless multi-zone temperature and humidity control system
Long-range LoRa® radio communication
Weekly and seasonal programs
Control of heating, cooling, and dehumidification systems
Remote control via mobile APP Intelliclima+
Advantages✔ UNIVERSAL FOR ALL SYSTEMS
The components of the Fantini Cosmi multizone system are modular, flexible, and adaptable to any type of installation requirement (radiators, fan coils, underfloor radiant systems), whether in a centralized or independent heating system. Depending on specific needs, it is possible to select the devices to be integrated into the system’s configuration network.✔ EVERY ROOM IS ALWAYS CONNECTED

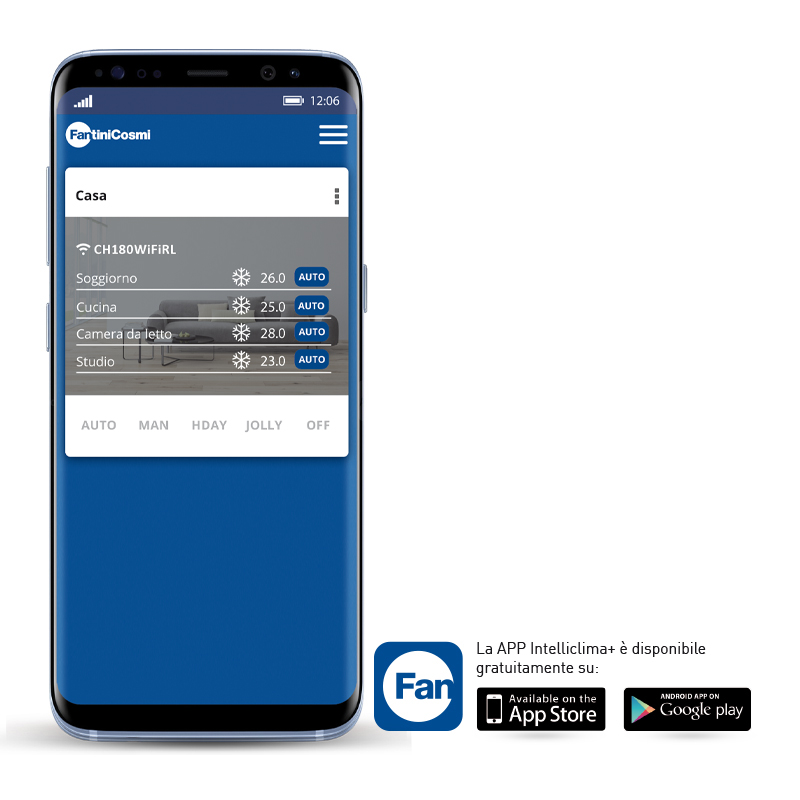

With the Fantini Cosmi APP, you can control and adjust the temperature and programmed settings, and view the humidity level in each zone—even via WiFi.✔ COMFORT AND ENERGY SAVINGS
Schedule operating times and set the desired temperature in each individual room to ensure warm (or cool) spaces only when and where needed—without waste.✔ CONSUMPTION UNDER CONTROL
With the Fantini Cosmi multizone system, you can monitor the real-time usage history of the system, directly from the thermostat or the App, through daily, monthly, and annual reports. -
TECHNICAL SPECIFICATION
Code Temperature setting range Relative humidity setting range Power supply Contact rating WiFi connection Transmission frequency Control differential CH180WIFIRL 2 ÷ 30 °C, 0.1°C increasing 30 ÷ 70%, 1% increasing 230V 50 Hz 5(3)A 250 V AC 2.4 GHz (802.11 b/g/n) ISM band EU868 0.3 ÷ 5 K -
HOMOLOGATION AND INSTALLATION
Homologation
- Compliant with EN 60730-1 and relevant parts
- Compliant with Directive 2014/53/EU (RED)
- ErP classification (EU Regulation 811/2013 – 813/2013):
– Class IV; Energy efficiency contribution: 2%
– Class VIII; 5% when used with other devices in the Fantini Cosmi wireless multi-zone system
Installation and useWall mounting, or installation on standard 500, 502, or 503 wall boxes, at a height of approximately 1.5 m from the floor, preferably on interior walls and away from doors and windows.
- The CH180WIFIRL allows direct or remote control of the Fantini Cosmi multi-zone radio temperature regulation system via an app. It serves as the supervisor for different areas of the home, communicating with the C830RL environmental thermostats-humidistats, O70RL radio thermostatic heads for radiators, and CH177RL actuators for boilers or zone solenoid valves.
- It allows the creation of custom programs for managing temperature and humidity in each zone, which can be easily modified based on needs. Both on the LCD display and via the app, it’s possible to view the overall energy consumption of the system through an intuitive graph.
- The CH180WIFIRL can communicate with up to 32 radio devices (such as thermostats and actuators) and manage up to 8 zones, ensuring precise and flexible control of the entire system.
- Operating Modes: MAN (manual), AUTO (weekly schedule), HOLIDAY (8th-day mode), JOLLY (programmable up to 90 days), OFF (system off or antifreeze program)
