Z52 – Z53 – Z53PT
OUT OF PRODUCTION
Motorized ball valves up to 1"
DESCRIPTION
0
2 way, 3 way by-pass and 3 way motorized ball valves up to 1”
General features
2/3 way / by-pass.
Nominal pressure 16 bar.
Differential pressure 16 bar.
Maximum pressure +100°C.
ADVANTAGES
0
2 way, 3 way by-pass and 3 way motorized ball valves up to 1”
TECHNICAL SPECIFICATION
CODICE WAY
DN TOTAL
BORE VALVE BODY
Ø KVS
Z52L 2 way 15 1/2" 3/4" 16.3
Z52M 2 way 15 1/2" 3/4" 16.3
Z52A 2 way 20 3/4" 1" 29.5
Z52B 2 way 25 1" 1"1/4 43
Z53L 3 way by-pass 15 1/2" 3/4" 16.3/0.8
Z53M 3 way by-pass 15 1/2" 3/4" 16.3/0.8
Z53A 3 way by-pass 20 3/4" 1" 29.5/1.9
Z53B 3 way by-pass 25 1" 1"1/4 43/2.9
Z53PTM 3 way 15 1/2" 3/4" 6
Z53PTL 3 way 20 3/4" 1" 11.5
Z53PTA 3 way 25 1" 1"1/4 18.3

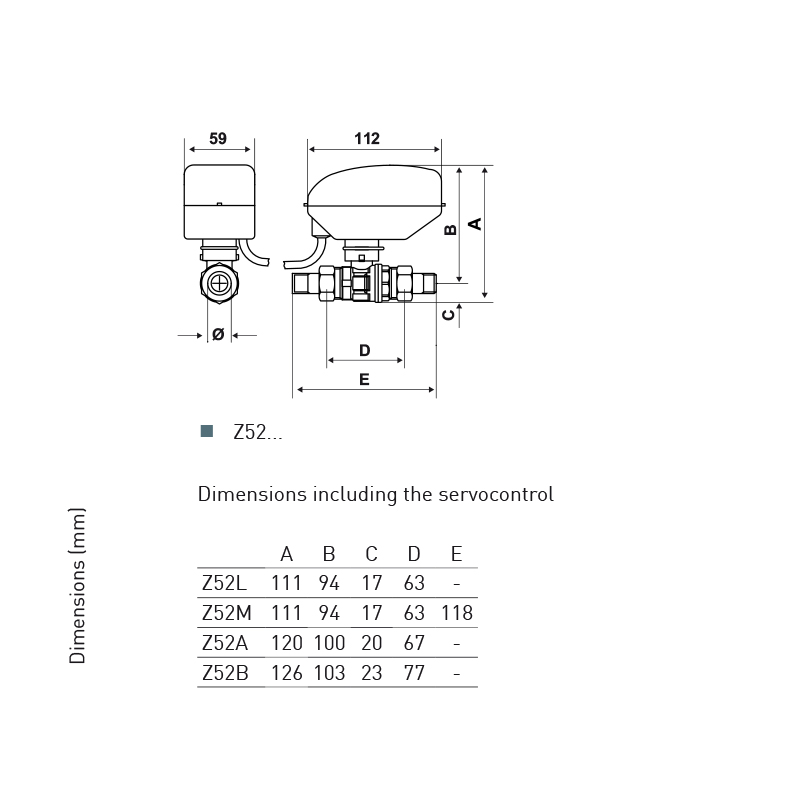

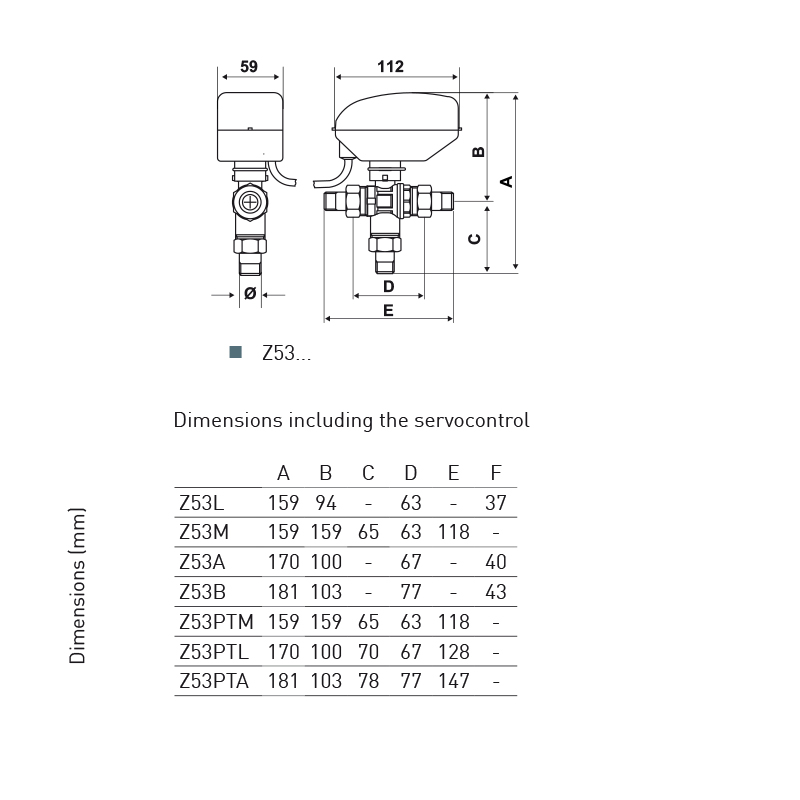

HOMOLOGATION AND INSTALLATION
Homologation
Complies with the EC 2006/42 / EC.
Complies with the EC low voltage directive 2006/95 / EC of 12 December 2006.
Complies with the EC Electromagnetic Compatibility Directive 04 / 108CEE: 2004, 92/31 / EEC: 1992 93/68 / EEC: 1993 93/97 / EEC: 993.
Installation and use
Valve motorisation is fast and easily executed with the O23 servocontrol and theT01A coupling group; it is always possible to disengage the servocontrol to operate the valve manually.
