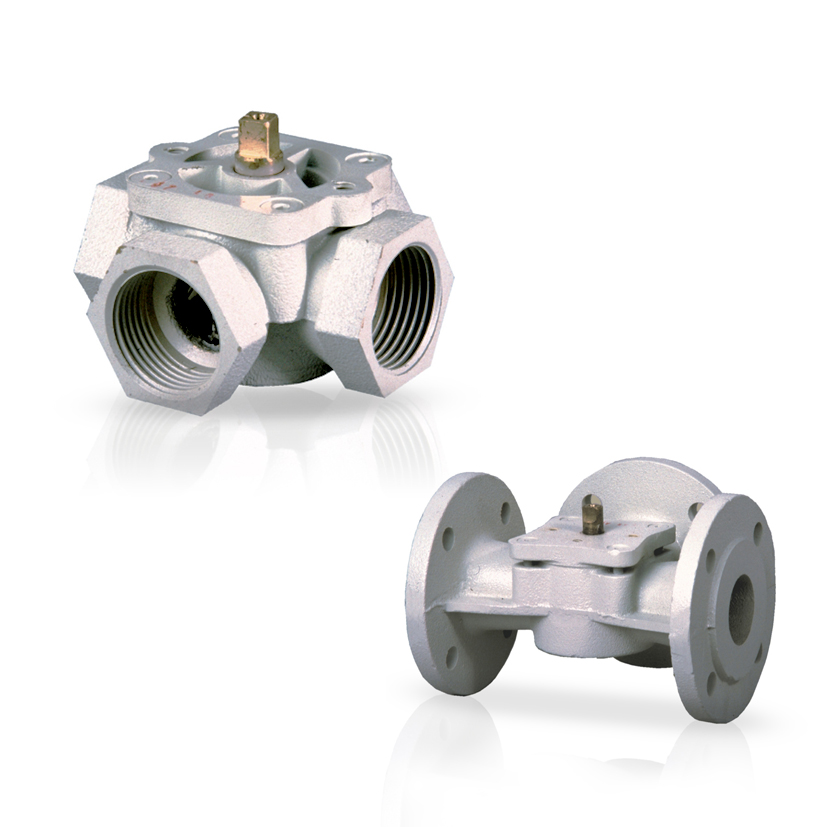

3-way rotor mixing valves
-
DESCRIPTION
General features0
3 way rotor valve body with mixing valve for hot water heating installations.

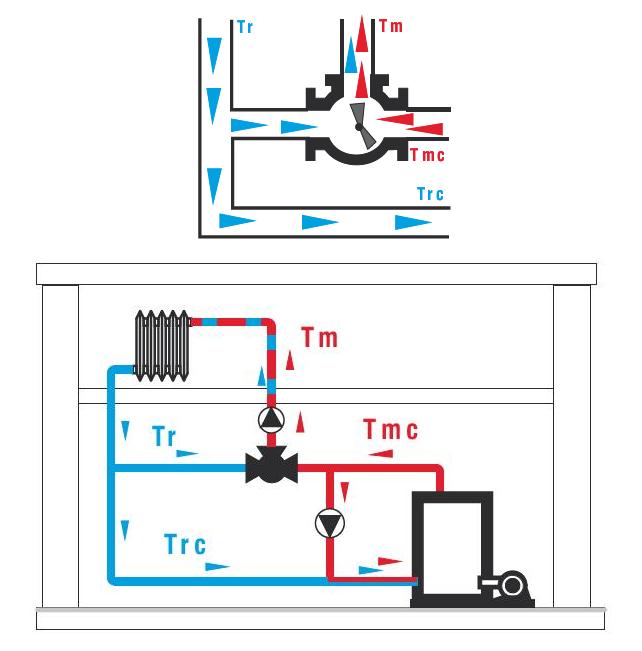

These valves permit a linear regulation of the temperature of the delivery water, the rotation movement of the shutter opens or closes proportionally two opposite inputs flowing into a third one.
INSTALLATION AND OPERATION
– Valve motorisation is fast and easily executed with the O23 servocontrol and theT01A coupling group; it is always possible to disengage the servocontrol to operate the valve manually.
TECHNICAL FEATURES
Cast iron valve body .
Antifriction bronze shutter.
Stainless steel shaft.
Neoprene seal rings.
-
ADVANTAGES
0
3 way rotor valve body with mixing valve for hot water heating installations.
These valves permit a linear regulation of the temperature of the delivery water, the rotation movement of the shutter opens or closes proportionally two opposite inputs flowing into a third one.
INSTALLATION AND OPERATION
– Valve motorisation is fast and easily executed with the O23 servocontrol and theT01A coupling group; it is always possible to disengage the servocontrol to operate the valve manually.
TECHNICAL FEATURES
Cast iron valve body .
Antifriction bronze shutter.
Stainless steel shaft.
Neoprene seal rings.
Advantages -

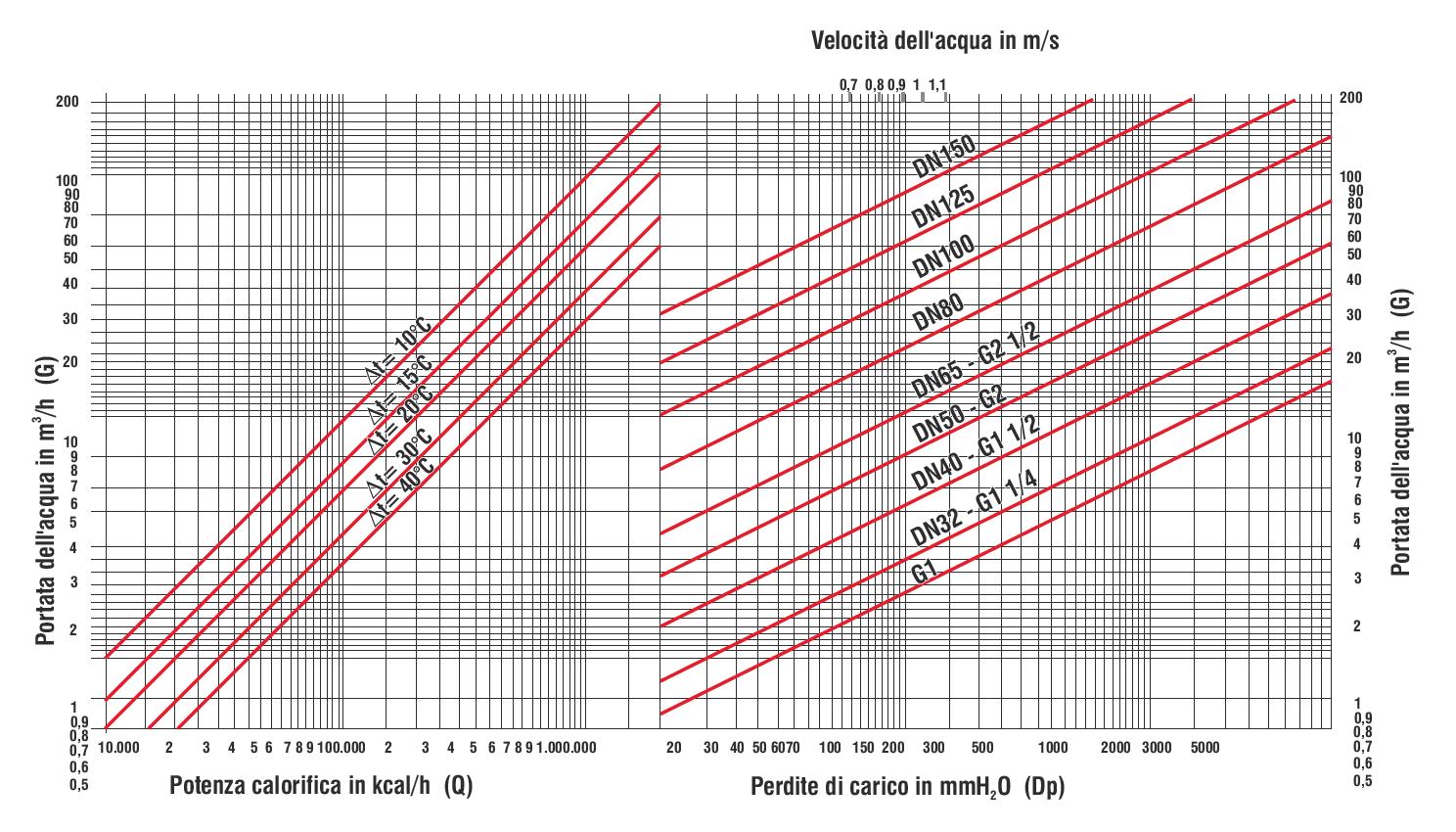

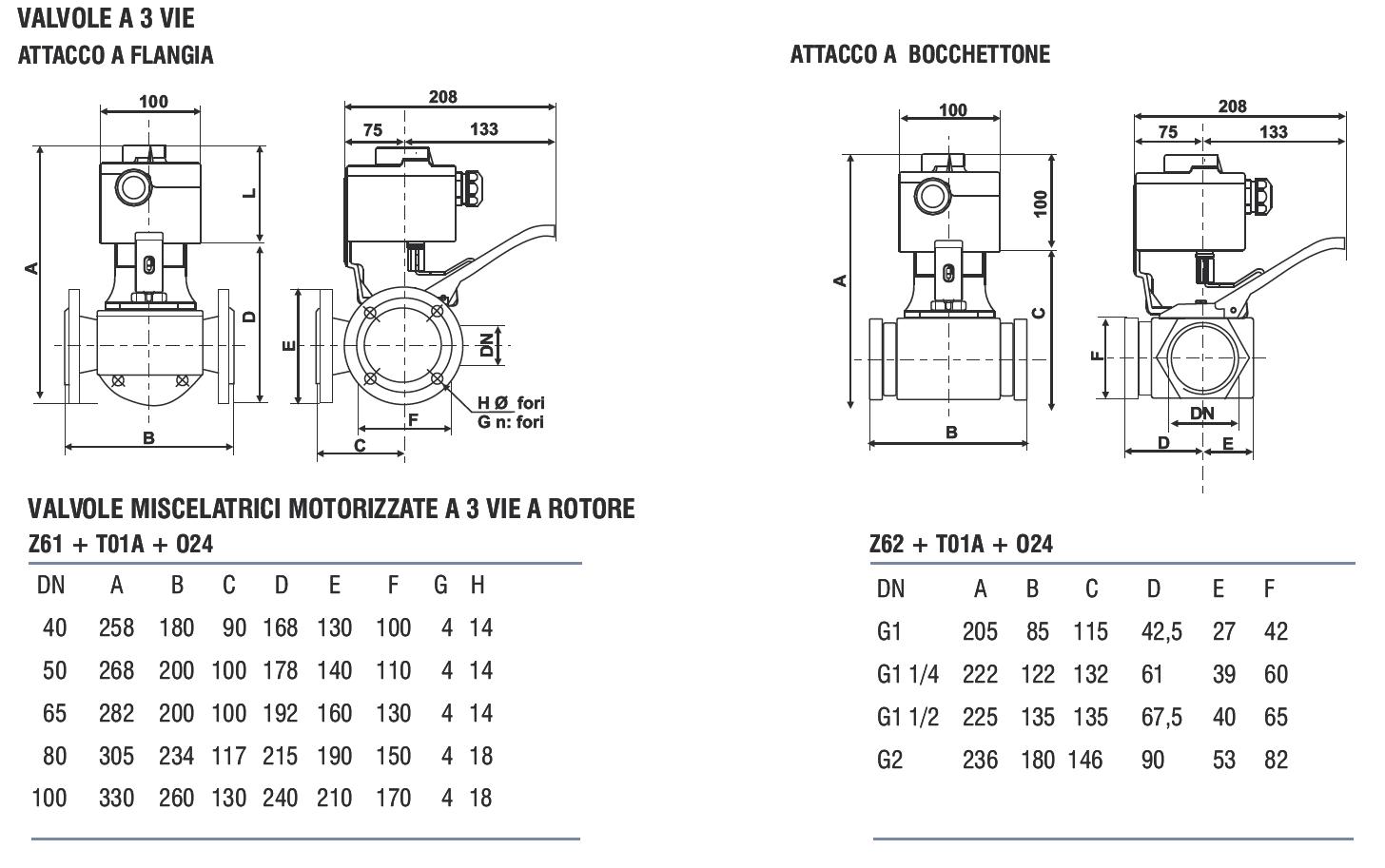

TECHNICAL SPECIFICATION
-
HOMOLOGATION AND INSTALLATION
HomologationInstallation and use
