Single room heat recovery unit with air sanitization

•
•
•
•

RHINOCOMFORT 3 FOR MORE INFO

•
•
•
•
•
•
•

• DESCRIPTION
• ADVANTAGES
• TECHNICAL SPECIFICATION
• HOMOLOGATION AND INSTALLATION
• TECHNICAL LITERATURE
• FAQS

• DESCRIPTION
  0

  The only decentralized ventilation unit with integrated air sanitization.

  In addition to the benefits of mechanical ventilation with heat recovery (MVHR), RHINOCOMFORT 3 features an advanced air sanitization system. RHINOCOMFORT 3, thanks to a unique and innovative technology, combines the action of high-power UV-C and UV-A LEDs with a photocatalytic process that generates zero ozone emissions. This system sanitizes the incoming air by breaking down harmful substances and transforming them into harmless and healthy particles. When the sanitization function is activated, RHINOCOMFORT 3 eliminates up to 99.6% of viruses and bacteria, reduces concentrations of PM2.5, PM10, and Volatile Organic Compounds (VOCs), and prevents the formation of mold and humidity.

  General features

  THE AP19997 PACKAGE INCLUDES:

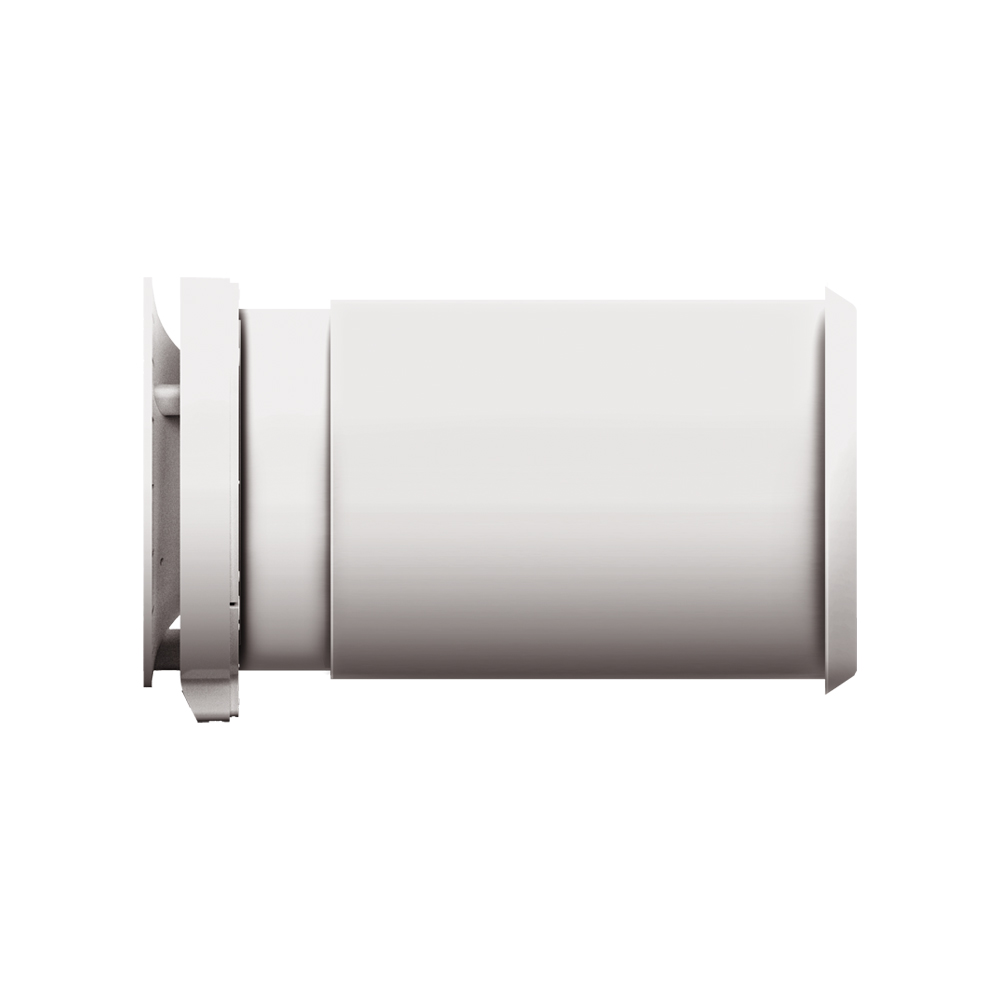

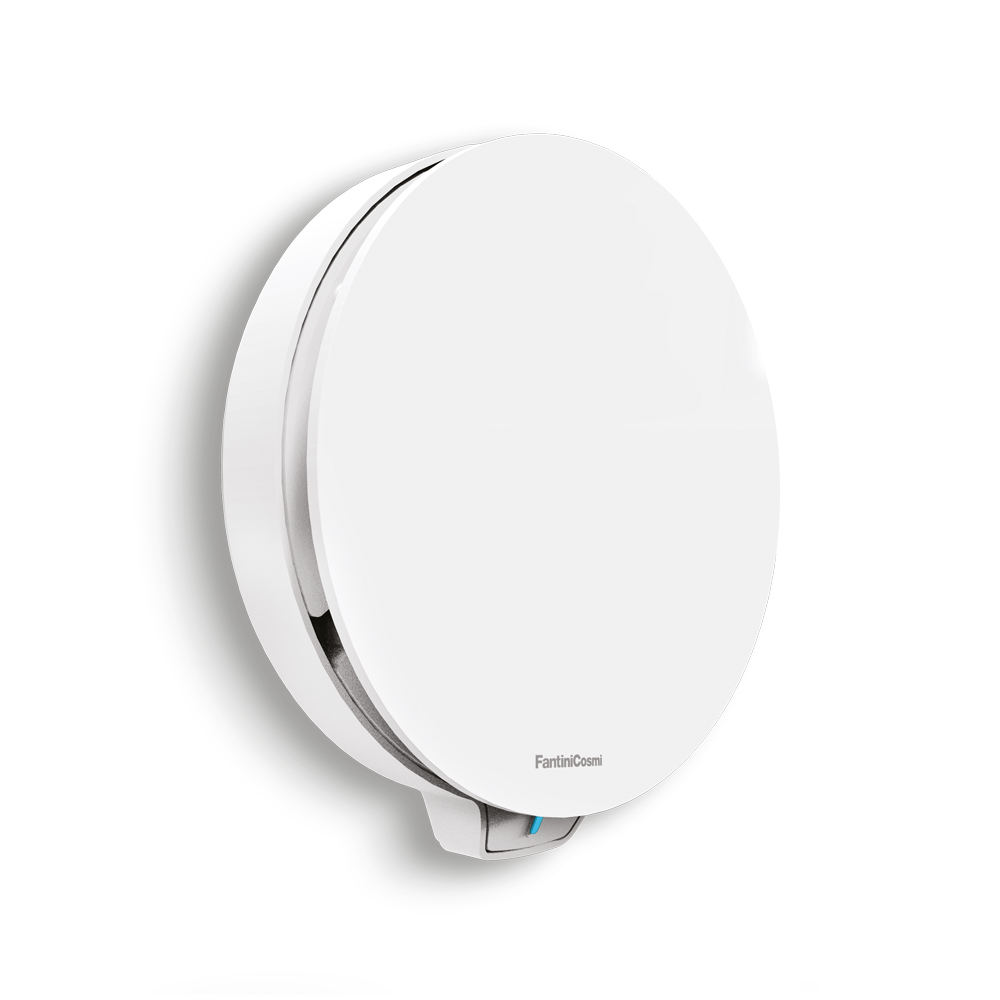

  ▪ Internal unit with magnetic front cover
  ▪ Ventilation cartridge with heat recovery and air sanitization system
  ▪ Telescopic duct
  ▪ External grille
  ▪ Instruction manual

  VENTILATION CARTRIDGE WITH SANITIZATION
  ▪ Helicoidal fan and DC Brushless motor
  ▪ Regenerative ceramic heat exchanger with up to 90% efficiency
  ▪ High-power UV-C and UV-A LEDs for air sanitization
  ▪ ISO Coarse class filter according to UNI EN ISO 16890:2017
  ▪ Humidity sensor
  ▪ Twilight sensor
  ▪ Airflow temperature sensor
  ▪ Indoor air quality sensor (eCO₂)

  CONNECTIVITY
  ▪ Radio frequency: WiFi 2.4 GHz
  ▪ Bluetooth Low Energy 5.0
  ▪ Remote firmware updates via Intelliclima+ app

  ACCESSORIES AND SPARE PARTS
  ▪ ISO Coarse class filters according to UNI EN ISO 16890:2017 (AP1984)
  ▪ Acoustic, thermal, and anti-condensation insulation panel (AP1985)
  ▪ Wind and rain protection grille (code AP1613)
  ▪ External noise reduction kit (code AP19881)

  RHINOCOMFORT 3 can be configured as either a main unit or an additional unit.
  When set as an additional unit, the airflow direction can be set as concordant or discordant to the main unit. All units communicate via Bluetooth Low Energy protocol and are managed through the Intelliclima+ app. They can be installed in large or multiple rooms (max signal range approx. 8–10 m in open space).

  Electric features

  • Power supply: 230V\~ 50Hz
• ADVANTAGES
  0

  The only decentralized ventilation unit with integrated air sanitization.

  In addition to the benefits of mechanical ventilation with heat recovery (MVHR), RHINOCOMFORT 3 features an advanced air sanitization system. RHINOCOMFORT 3, thanks to a unique and innovative technology, combines the action of high-power UV-C and UV-A LEDs with a photocatalytic process that generates zero ozone emissions. This system sanitizes the incoming air by breaking down harmful substances and transforming them into harmless and healthy particles. When the sanitization function is activated, RHINOCOMFORT 3 eliminates up to 99.6% of viruses and bacteria, reduces concentrations of PM2.5, PM10, and Volatile Organic Compounds (VOCs), and prevents the formation of mold and humidity.

  Advantages

  🔁 Continuous air exchange without opening windows
  RHINOCOMFORT 3 ensures constant ventilation of indoor spaces, preventing humidity, mold, and stagnant air. Ideal for improving indoor air quality in every season.

  🌬️ Active air sanitization up to 99.6%
  The innovative photocatalytic system with high-power UV-A and UV-C LEDs neutralizes viruses, bacteria, and pollutants (PM2.5, PM10, VOC), without generating ozone.

  ♻️ Heat recovery up to 90%
  The regenerative ceramic heat exchanger retains the heat from outgoing air and transfers it to the incoming air, reducing energy consumption and improving overall efficiency.

  📲 Smart control with Intelliclima+ App
  Remote configuration and management via the App, thanks to WiFi and Bluetooth connectivity. Compatible with other Fantini Cosmi smart devices.

  🧠 Auto Smart Sensor
  The unit automatically adjusts ventilation cycles and fan speed based on internal sensor data (temperature, humidity, air quality), optimizing comfort and energy use at all times.
• TECHNICAL SPECIFICATION

  Product code	AP19997
  Duct diameter	DN 160 mm
  Power supply	110÷230 Vac ~ 50/60Hz
  Airflow rate (m³/h)	Sleep speed: 15 Speed 1: 30 Speed 2: 50 Speed 3: 75 Boost speed*: 100
  Power consumption (W)	Air intake / extraction Sleep speed: 2.5 Speed 1: 3 Speed 2: 5 Speed 3: 8 Boost speed*: 20 Air intake with active sanitization Sleep speed: 8 Speed 1: 8.5 Speed 2: 10.5 Speed 3: 14.5 Boost speed*: —
  Sound pressure level (dB(A))	At 1.5 m Speed 1: 20.5 Speed 2: 29.5 Speed 3: 37.0 Boost speed*: 45.8 At 3 m Speed 1: 15.0 Speed 2: 23.5 Speed 3: 31.5 Boost speed*: 40.5 Sleep speed: n.a.
  Operating temperature	-20°C to +50°C
  Filter classification	ISO COARSE
  Protection rating	IP X4
  Heat recovery efficiency	Up to 90%

  * Boost speed is not manually selectable.
• HOMOLOGATION AND INSTALLATION
  Homologation

  Compliant with Directive 2014/53/EU (RED);
  Compliant with Directive 2009/125/EC Energy Related Products (ERP) – Ecodesign 2018;
  Compliant with Standards: EN 60335-1:2013+A11:2015; EN 60335-2-80:2005+A2:2009; EN 55014-1:2006+A1:2009+A2:2011; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 301 489-1 V1.9.2; EN 301 489-7 V1.3.1; ETSI EN 300 220-1 V2.4.1; ETSI EN 300 220-2 V2.4.1; UNI EN ISO 10140-2 – UNI EN ISO 717-1

  Installation and use

  The RHINOCOMFORT 3 ventilation unit must be installed on perimeter walls. Thanks to the telescopic duct, it easily adapts to wall thicknesses ranging from a minimum of 25 cm () to a maximum of 53 cm. Installation is extremely quick and simple, also due to the expandable external grille, which can be mounted from the inside.
  (*) When installing kit AP19881, the minimum wall thickness required is 45 cm.

  ---

  Manual Mode Setting
  In this mode, you can manually select the fan speed:

  • V3 – high speed

  • V2 – medium speed

  • V1 – low speed

  • SLEEP – minimum (night-time) speed

  You can also set the ventilation cycle:

  • Air intake (temporary mode, 60 minutes)

  • Air extraction (temporary mode, 60 minutes)

  • Alternating flow intake/extraction in 45-second cycles

  The unit supplies or extracts air while recovering heat, automatically optimizing cycle intervals based on preset thresholds for eCO2, humidity, twilight sensor, and the detected room temperature.

  ---

  Auto Mode Setting
  The unit follows a daily schedule, updating every 30 minutes with parameters for speed (VEL 1 – VEL 2 – VEL 3 – SLEEP**) and Off.
  Air intake/extraction and heat recovery are optimized through automatic cycle intervals.

  In this operating mode, the SENSOR function is always active:
  The unit supplies or extracts air while recovering heat, automatically optimizing speed and cycle intervals based on the thresholds set on the internal sensors.

  ---

  Sanitization Function Setting
  From the main screen of the App, you can activate or deactivate the air sanitization function.
• TECHNICAL LITERATURE
  • RHINOCOMFORT 3 EN technical data sheet
  • RHINOCOMFORT 3 instructions
  • RHINOCOMFORT 3 - FR instructions
  • RHINOCOMFORT 3 - ES instructions
  • RHINOCOMFORT 3 - DE instructions
  • RHINOCOMFORT 3 - RU instructions
  • RHINOCOMFORT 3 energy label
  • RHINOCOMFORT 3 Conformity EU declaration
• FAQS
  • What does the air sanitization function involve?

    Sanitization occurs through a photocatalytic process with zero ozone emissions, using UV-A and UV-C LEDs to neutralize up to 99.6% of viruses, bacteria, fine dust (PM2.5/PM10), and VOCs (volatile organic compounds). The supplied air is thus healthier and safer.

  • How does the heat recovery work?

    RHINOCOMFORT 3 features a regenerative ceramic heat exchanger that retains heat from the outgoing air and transfers it to the incoming air. This enables up to 90% heat recovery, significantly saving energy and reducing thermal losses.

  • Does RHINOCOMFORT 3 operate automatically?

    Yes. The Auto Smart Sensor mode automatically adjusts fan speed and ventilation cycles based on data from internal sensors measuring temperature, humidity, air quality (eCO₂), and light. This ensures optimal comfort with minimal consumption.

  • How quiet is it during operation?

    In Sleep mode (night-time), it is extremely quiet, with a noise level of only 15 dB(A) at 3 meters distance, ideal for bedrooms or quiet environments.

  • What is the air flow rate?

    RHINOCOMFORT 3 has 5 speeds:
    Sleep: 15 m³/h
    Speed 1: 30 m³/h
    Speed 2: 50 m³/h
    Speed 3: 75 m³/h
    Boost (automatic): up to 100 m³/

  • What kind of maintenance does it require?

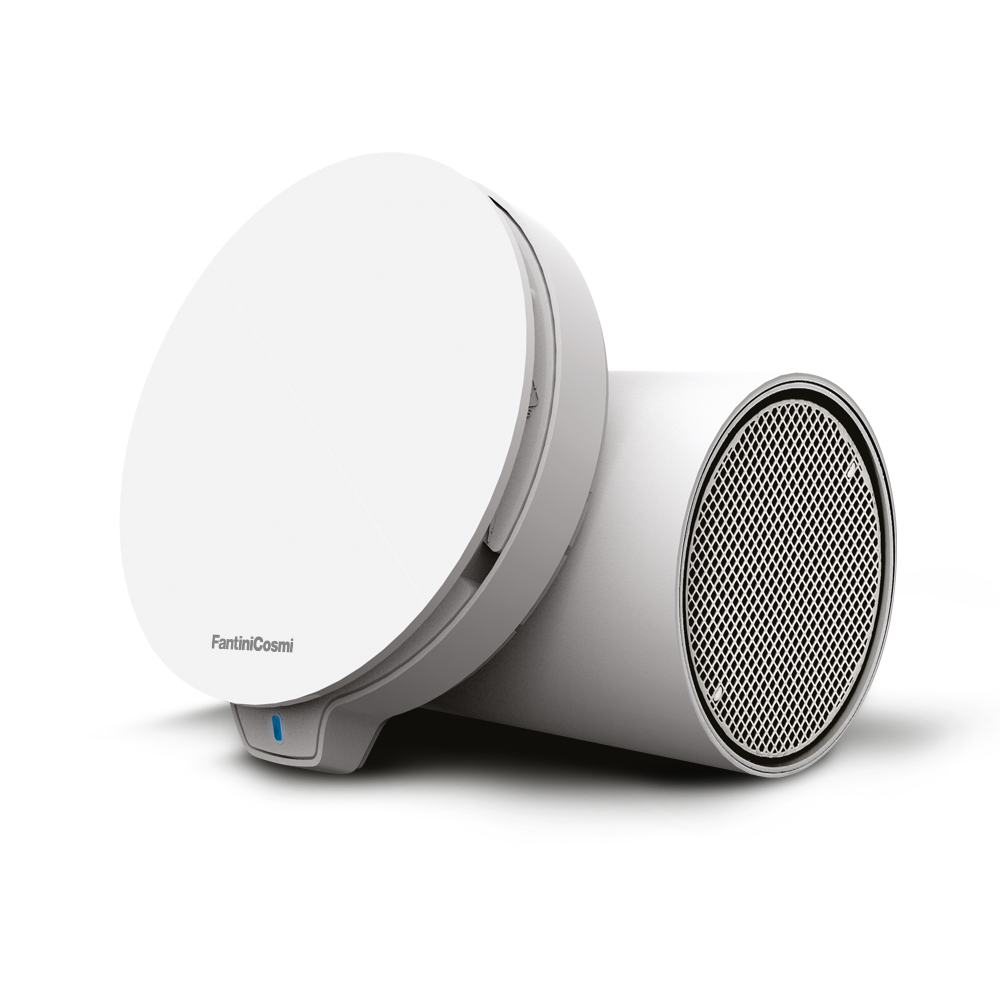

    The unit has an easily accessible ISO Coarse filter. The front cover is magnetic to make filter cleaning and replacement simple and quick.
